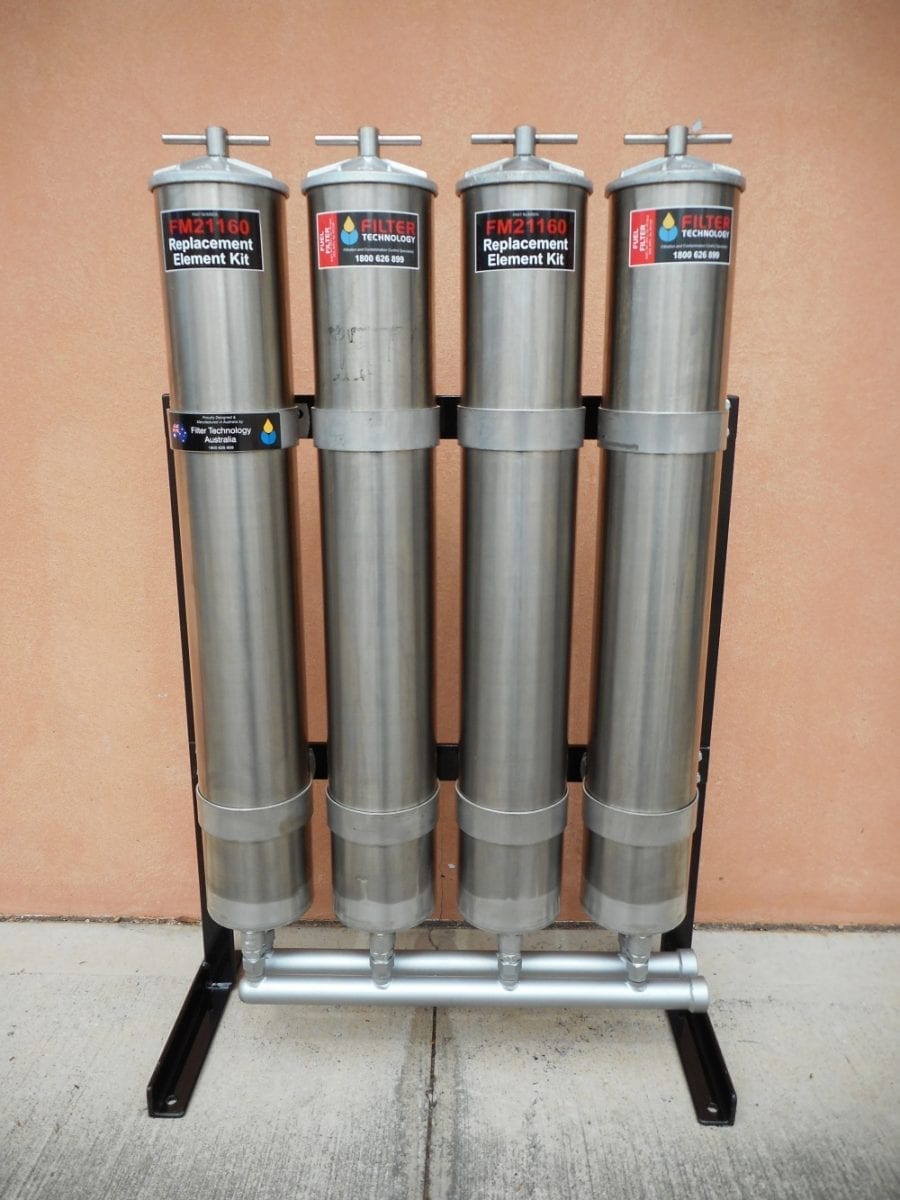

FM40443 Fixed Bowser Filtration Unit

Designed to Suit Bulk Fuel Transfer on Fuel Pumps or Bowsers

Description

FUNCTION:

The FM40443 is designed to go on the outlet of the dispensing pump. It is a matter of removing the dispensing hose from the pump, running a short hose to the inlet of the FM40443 and reattaching the dispensing hose to the outlet of the FM40443.

FEATURES:

  • Self-Contained Unit
  • 1” BSPT for Inlet and Outlets

FILTERS:

  • 4 x FM3104 Fuel Filters

 MOUNTING:

  • The Light Duty Powder Coated Frame has four mounting holes that enable the unit to be secured easily.

FLOW:

  • 40-100 litres/min
  • 5-26.4 gals/min

Note: The pump efficiency may drop off by 10-15% if the pump is not a positive displacement pump, in some pumps the relief valve can be adjusted to compensate some of this flow loss.



Additional information

Weight 53 kg
Dimensions 66 × 30 × 106 cm
