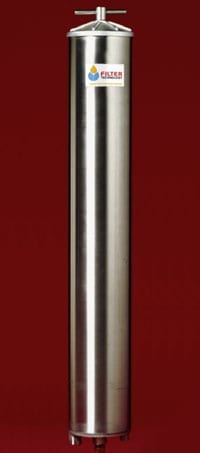

FM3104 Engine Fuel Filtration Unit

Description

FM3104 Engine Fuel Filters are suitable for use on:

  • used in multiples in large systems
  • fuel pumps and bowsers
  • large stationary engines

Filter Technology engine fuel filters are a full flow filter unit. There are three basic considerations when installing Filter Technology engine fuel filters:

  • Mounting location.
  • Bleed off point for the existing system to the filter.
  • Return from the filter into the existing system.

FM3104 filters include 4 elements and:

  • 3 x 3/4″ UNO female threads for inlet and outlet and pressure gauge or drain.
  • 4 x 6 mm (1/4″) holes in the 10 mm (3/8″) return tube allow fuel to flow through unrestricted.

FM3104 Flow Rates

Line in pressureLine out flow
barpsiL/mingals/hr
1.382013.85185
2.073022.04293
2.764031.36418
3.455040.00533
4.146046.04614
4.837053.84718
5.528058.32777
6.219065.60875
6.8910068.08907

 FM3104 specifications

FM3404 Quick Change Filter Assembly

Comprises FM3104 filter assembly including lid but minus housing. Enables quick and easy filter changes in the field, allowing assembly to be returned to the workshop for servicing.

 Quick Change procedure

DimensionsMetricUS
Height875 mm35″
Diameter127 mm5.0″
Weight8.5 kg19 lb
Maximum Pressure4.83 bar70 psi
Rec. Operating Pressure2.76 bar40 psi

 FM3104 Filter Parts List

 FM3404 Quick Change Assembly Parts List
