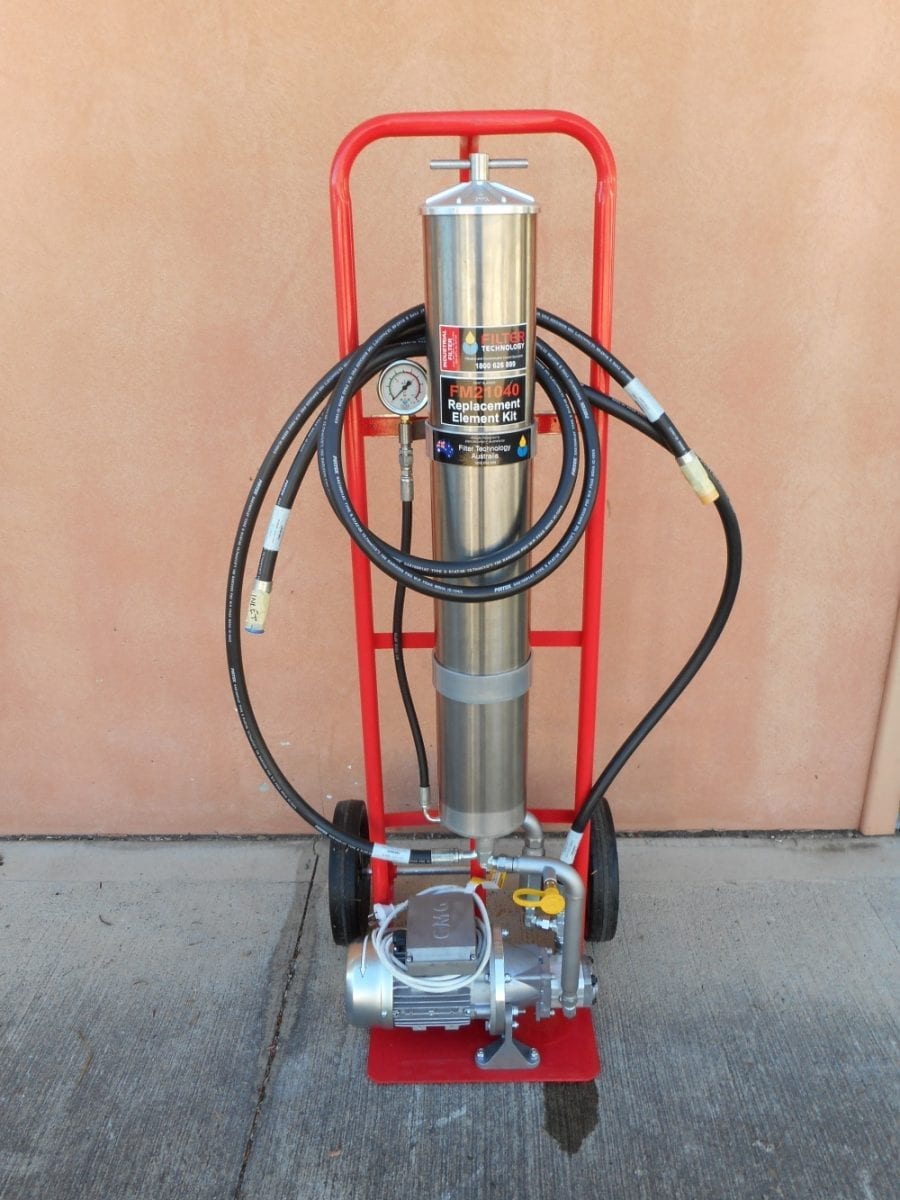

FM50112ULW Ultra Light Weight Mobile Filtration Buggy

FTA Buggies are typically used for small hydraulic reservoirs on gearboxes, final drives, blow and injection moulder or wherever hydraulic oils are used. Their kidney loop system and quick release couplings allow easy movement between machines in industrial sites allowing machinery to be filtered while the machine is still in service. They can also be used to filter new oil from the drum into the machine.

Description

FUNCTION:

Oil Applications:

FTA Buggies are typically used for hydraulic reservoirs or gearboxes, blow and injection moulded or wherever light to medium weight industrial lubricants are used. Flow rates will vary dependant on the viscosity of the fluid being filtered. Their kidney loop system and quick release couplings allow easy movement between machines in industrial sites allowing machinery to be filtered while the machine is still in service. They can also be used to filter new oil from the drum into the machine.

Fuel Applications:

FTA Buggies can be used to filter fuel contaminated with dust, rust, airborne contaminants and algae in low volumes where the tanks have been treated with a biocide. These buggies can also act as a remote filling station where fuel cleanliness cannot be guaranteed.

STANDARD FEATURES:

  • Electric motor with 300mm inlet cable
  • 5 Bar pressure relief valve
  • Pressure gauge
  • Five metres of hosing (2.5m suction & 2.5m return)
  • Two wheeled light weight trolley
  • Capable of being adapted for most recycling needs
  • Mobile and portable

 FILTERS:

  • 1 x FM3204 Filters

ADDITIONAL CUSTOMIZATION

  • Quick release couplings
  • Frame colour
  • Live Sample Point
  • Isolation switch
  • 240v 10A inlet
  • Hour run meter
  • E-Stop

 FM50112 buggies are fitted with FM3204 filtration units for use with either diesel or oil applications.



Additional information

Weight40 kg
Dimensions55 × 42 × 130 cm
