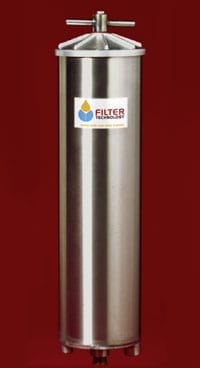

FM3202 Industrial Oil & Fuel Filtration Unit

Suitable for hydraulic systems 100 – 200 litre capacity, including 4 – 8 tonne trucks, 5-12 tonne forklifts, construction, agricultural and earth moving equipment.

Description

FM3202 Industrial Oil & Fuel Filters are suitable for use on:

  • construction and agricultural equipment
  • forklifts (5-12 tonnes)
  • earthmoving equipment
  • hydraulic systems (100-200 litre capacity)

Filter Technology industrial oil & fuel filters are a full flow filter unit. There are three basic considerations when installing Filter Technology industrial oil & fuel filters:

  • Mounting location.
  • Bleed off point for the existing system to the filter.
  • Return from the filter into the existing system.

FM3202 filters include 2 elements and:

  • 3 x 3/4″ UNO female threads for inlet and outlet and pressure gauge or drain.
  • 2 x 6 mm (1/4″) holes in the 10 mm (3/8″) return tube allow fuel to flow through unrestricted.

FM3202 Flow Rates

Line in pressureLine out flow
barpsiL/mingals/hr
1.382012.00160
2.073016.00213
2.764019.00253
3.455022.00293
4.146024.00320
4.837026.00346
5.528028.00373
6.219030.00400
6.8910032.00426

 FM3202 specifications

FM3502 Quick Change Filter Assembly

Comprises FM3202 filter assembly including lid but minus housing. Enables quick and easy filter changes in the field, allowing assembly to be returned to the workshop for servicing.

 Quick Change procedure

DimensionsMetricUS
Height525 mm20.5″
Diameter127 mm5.0″
Weight5.0 kg11.25 lb
Maximum Pressure4.83 bar70 psi
Rec. Operating Pressure2.76 bar40 psi

 FM3202 Filter Parts List

 FM3502 Quick Change Assembly Parts List

Additional information

Weight5.0 kg
Dimensions127 × 525 cm
