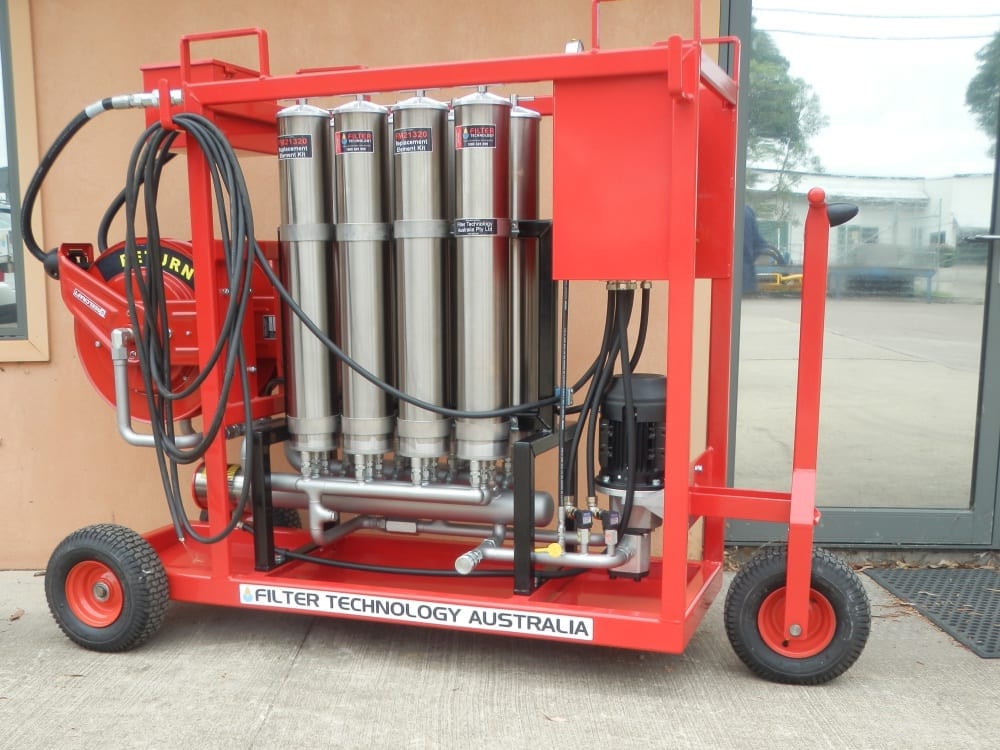

FM60862 Hydraulic Filtration Unit

Mobile Unit Designed to suit Kidney looping Plant Hydraulics Systems.

Description

FUNCTION:

Oil Applications:

FTA Buggies are typically used for large hydraulic reservoirs on heavy equipment, gearboxes and final drives. Their kidney loop system and quick release couplings allow easy movement between machines in industrial sites allowing machinery to be filtered while the machine is still in service. They can also be used to filter new oil from the drum into the machine.

FEATURES:

  • Pressure driven variable drive.
  • Heater mounted under the filter housings.
  • Element Change light
  • Fork lift lugs to allow easy movement.
  • Two hose reels with 8 metres of ¾” hose on the inlet and return reel.
  • Tool box for fittings.
  • Hose stored on Quick Release Couplings on the machine.
  • Mounted on a Heavy Duty, Powder coated frame
  • 3 silicone filled wheels

FILTERS:

  • 8 x FM3204 Filter Housings.

ELECTRICS:

  • Variable Drive Pressure Control
  • Heater
  • 240V Single Phase

For 400V 3 Phase System use Part Number: FM60863

If you require any other Power Supply please contact FTA for details

SUITABLE FOR ALL:

  • Gear oils
  • Hydraulic oils

OPTION:

On-board Particle Counter can be fitted on request.

Additional information

Weight440 kg
Dimensions160 × 80 × 148 cm
