FM1000 Filtration Unit

Automotive products are suited to passenger cars and four wheel drives operating in harsh environments. The advantage in fitting the the FM1000 range of filters is extended engine component life, lower emissions and extended oil drain intervals. Element change intervals are in line with current OEM recommendations

Description

FM1000 Filtration Units can be configured both for fuel and oil applications:

Oil

  • Motor vehicles
  • LPG powered forklifts
  • Sump capacity up to 5 litres/1.3 US gal

Fuel

  • Petrol engines
  • 4WDs petrol and diesel

Features

  • The FM1000 filter includes 1 element. The housing is moulded in glass-reinforced nylon. The base is cast aluminium, giving the best protection against corrosion.
  • The FM1000 filter is produced with 2 x 1/4″ BSPT female threads for inlet and outlets.
  • A 1.5 mm restrictor is fitted when filtering engine oil.

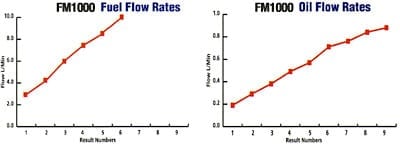

FM1000 Flow Rates

Flow rates Oil Diesel
Result Number Line in pressure Line out flow Line out flow
bar psi L/min gals/hr L/min gals/hr
1 1.38 20 0.19 2.53 3.00 39.90
2 2.07 30 0.29 3.86 4.20 55.86
3 2.76 40 0.38 5.05 6.00 79.80
4 3.45 50 0.49 6.52 7.50 99.75
5 4.14 60 0.57 7.58 8.50 113.05
6 4.83 70 0.71 9.44 10.00 133.00
7 5.52 80 0.76 10.11 4.96 bar (71 psi) final pump pressure obtained during test
8 6.21 90 0.84 11.17
9 6.89 100 0.88 11.70



Dimensions Metric US
Height 210 mm 35″
Diameter 127 mm 5.0″
Weight 3 kg 19 lb
Maximum Pressure 4.83 bar 70 psi
Rec. Operating Pressure 2.41 bar 35 psi

FM1000 Specs Sheet
