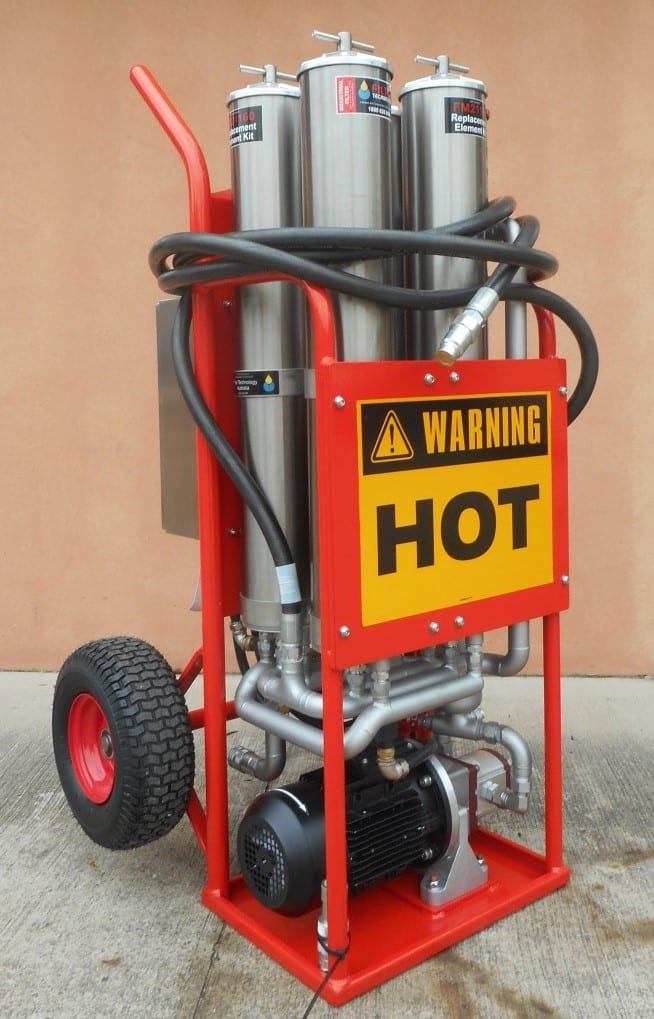

FM50462 Heavy Duty Mobile Filtration Buggy

FTA Buggies are typically used for small hydraulic reservoirs on gearboxes, final drives, blow and injection moulder or wherever hydraulic oils are used. Their kidney loop system and quick release couplings allow easy movement between machines in industrial sites allowing machinery to be filtered while the machine is still in service. They can also be used to filter new oil from the drum into the machine.

Description

FUNCTION:

Oil Applications:

FTA Buggies are typically used for small hydraulic reservoirs on heavy equipment, gearboxes and final drives. Their kidney loop system and quick release couplings allow easy movement between machines in industrial sites allowing machinery to be filtered while the machine is still in service. They can also be used to filter new oil from the drum into the machine.

FEATURES:

  • Pressure Driven Variable Drive
  • Heated
  • Fitted with pressure relief valve
  • Pressure gauge
  • Hour run metre
  • Element change light
  • Pressure differential switch
  • Emergency Stop Button
  • Seven metres of hosing (3.5m suction & 3.5m return)
  • ¾” Quick release couplings
  • Two wheeled, heavy-duty trolley
  • Mobile and portable
  • Silicone filled Tyres

 FILTERS:

  • 4 x FM3204 Industrial Filter Units

ELECTRICS:

  • Variable Drive Pressure Control with Heater
  • 240V Single Phase

For 400V 3 Phase System use Part Number: FM50463

If you require any other Power Supply please contact FTA for details

SUITABLE FOR ALL:

  • Gear oils
  • Hydraulic oils

OPTION:

On-board Particle Counter can be fitted on request

Additional information

Weight174 kg
Dimensions75 × 67 × 139 cm
