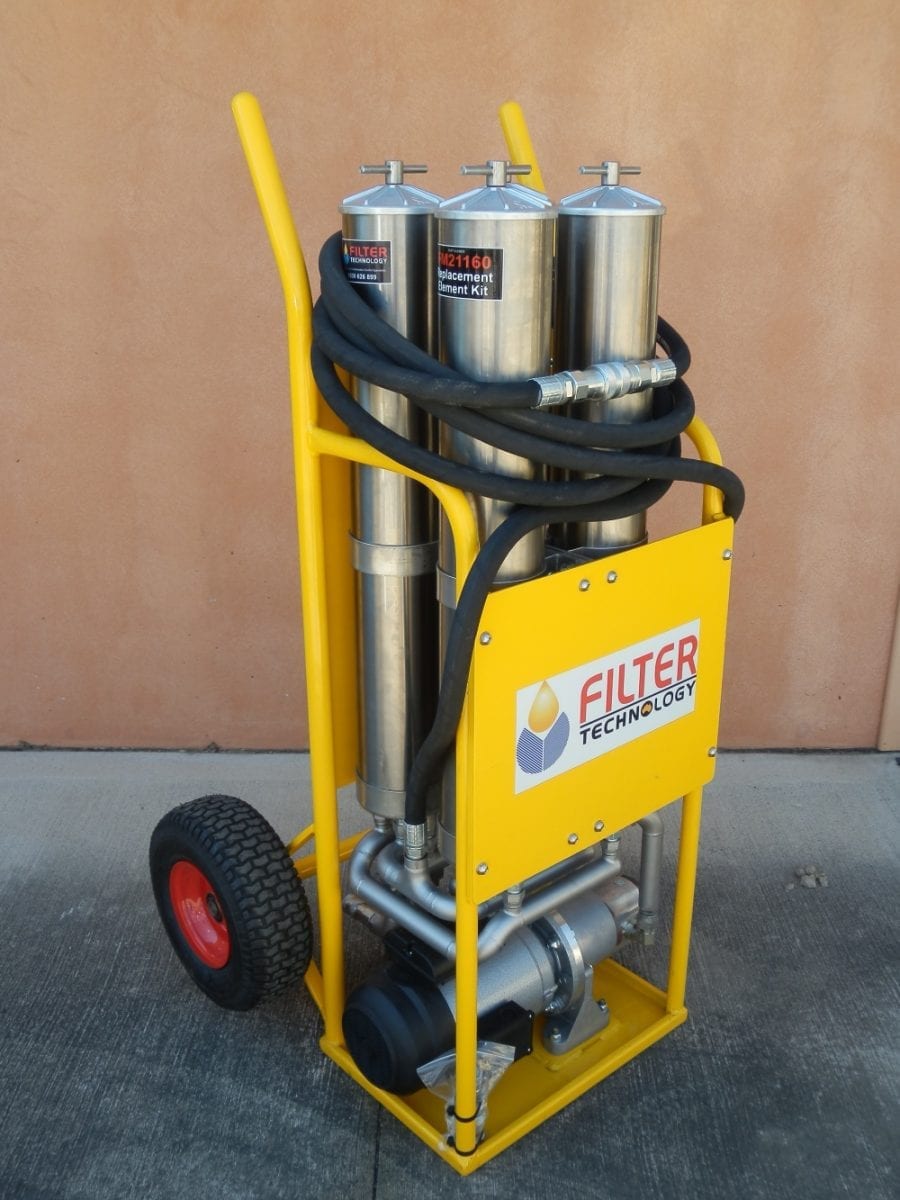

FM50412 Heavy Duty Mobile Filtration Buggy

FTA Buggies are typically used for small hydraulic reservoirs on gearboxes, final drives, blow and injection moulder or wherever hydraulic oils are used. Their kidney loop system and quick release couplings allow easy movement between machines in industrial sites allowing machinery to be filtered while the machine is still in service. They can also be used to filter new oil from the drum into the machine.

Description

FUNCTION:

Oil Applications:

FTA Buggies are typically used for hydraulic reservoirs on heavy equipment, gearboxes, final drives, blow and injection moulding or wherever hydraulic oils are used. This kidney loop system and quick release couplings allow easy movement between machines in industrial sites allowing machinery to be filtered while the machine is still in service. They can also be used to filter new oil from the drum into the machine.

Fuel Applications:

FTA Buggies can be used to filter fuel contaminated with dust, rust, airborne contaminants and algae where the tanks have been treated with a biocide. These buggies can also act as a remote filling station where fuel cleanliness cannot be guaranteed.

FEATURES:

  • Electric motor
  • Fitted with pressure relief valve
  • Pressure gauge
  • Hour run metre
  • Element change light
  • Pressure differential switch
  • Emergency Stop Button
  • Five metres of hosing (3.5m suction & 3.5m return)
  • ¾” Quick release couplings
  • Two wheeled heavy duty trolley
  • Mobile and portable

 FILTERS:

  • 4 x FM3204 Filters

ELECTRICS:

  • D.O.L System Control
  • 240V Single Phase

For 400V 3 Phase System use Part Number: FM50413

If you require any other Power Supply please contact FTA for details

SUITABLE FOR ALL:

  • Engine oils
  • Hydraulic oils
  • Diesel fuels
  • Most solvents (not suitable for water )

 FM50412 buggies are fitted with FM3204 filtration units for use with either diesel or oil applications.

Additional information

Weight120 kg
Dimensions75 × 67 × 139 cm
