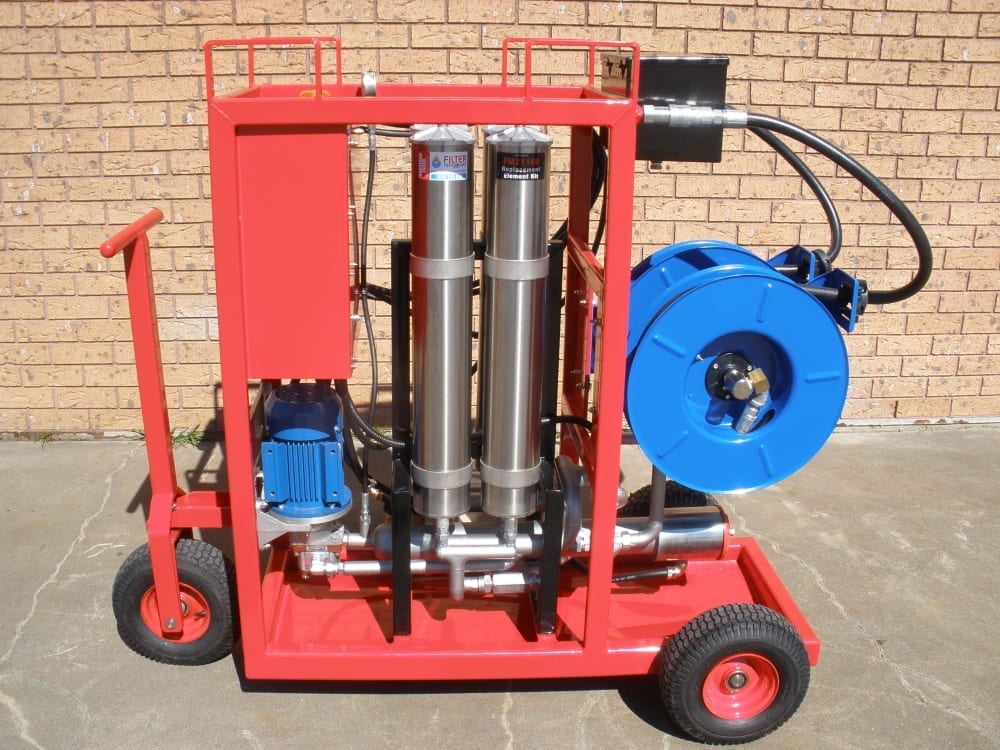

FM60442 Hydraulic Filtration Unit

Mobile Unit Designed to suit Kidney Looping Plant Hydraulics Systems.

Description

FUNCTION:

Oil Applications:

FTA Buggies are typically used for large hydraulic reservoirs on heavy equipment, gearboxes and final drives. Their kidney loop system and quick release couplings allow easy movement between machines in industrial sites allowing machinery to be filtered while the machine is still in service. They can also be used to filter new oil from the drum into the machine.

FEATURES:

  • Heater mounted under the filter housings
  • Stainless steel manifolds
  • Mobile and portable
  • Element change light
  • Hour run metre
  • Live sample point
  • Emergency stop button
  • Fork lift lugs to allow easy movement
  • Two hose reels with 8 metres of ¾” hose on the inlet and return reels
  • ¾”Quick release couplings
  • Tool box for fittings
  • Powder coated heavy-duty framework
  • 3 Silicone filled wheels
  • Park break
  • Drip tray with E-Vac point

FILTERS:

  • 4 x FM3204 Filter Housings.

ELECTRICS:

  • 24V System Control
  • Heater
  • 240V Single Phase

For 400V 3 Phase System use Part Number: FM60443

If you require any other Power Supply please contact FTA for details

SUITABLE FOR ALL:

  • Gear oils
  • Hydraulic oils

OPTION:

On-board Particle Counter can be fitted on request.

Additional information

Weight 390 kg
Dimensions 150 × 90 × 148 cm
